Потенциометры Bourns® Trimpot® выполнены по металлокерамической технологии и применяются для регулировки электрических цепей во всех типах электронного оборудования. Разнообразие конфигураций и полное соответсвие требованиям современных производственных процессов открывают широкие возможности для инженеров. Отличительные особенности данной серии: высокая стабильность сопротивления и низкий уровень шумов
Страница товара на сайте производителя
Многооборотные триммеры Trimpot
Серия | Data Sheet | Внешний вид | Кол-во циклов | Кол-во оборотов | Мощность | Тип монтажа | Диапазон сопротивлений | CRV/ENR* | Температурный коэффициент | Герметичность | Сопотствующие документы |
---|---|---|---|---|---|---|---|---|---|---|---|

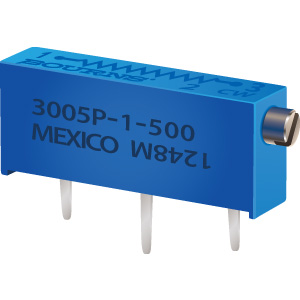

3005 | ![]() |
![]() |
200 cycles | 20 | through-hole | 10 to 50K ohms | 100 ohms ENR max. | ±50 ppm/°C | sealed | 3005 | |

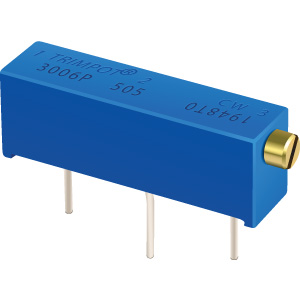

3006 | ![]() |
![]() |
200 cycles | 15 | through-hole | 10 ohms to 2 megohms | 1 % or 2 ohms (whichever is greater) | ±100 ppm/°C | sealed | 3006 (10 to 200 ohms) 3006 (250 to 50K ohms) 3006 (100K to 2M ohms) |
|

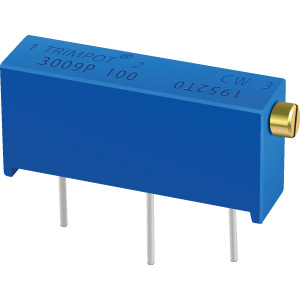

3009 | ![]() |
![]() |
200 cycles | 0.75 watts | through-hole | 10 ohms to 2 megohms | 1 % or 1 ohm (whichever is greater) | sealed | 3009 (10 to 200 ohms) 3009 (250 to 50K ohms) 3009 (100K to 2M ohms) |
||

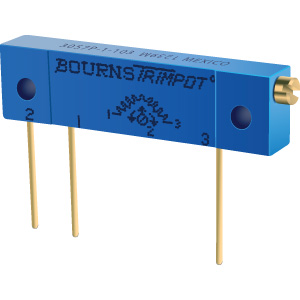

3057 | ![]() |
![]() |
200 cycles | 1 watt | through-hole | 10 to 50K ohms | 100 ohms ENR max. | sealed | 3057L 3057 |
||

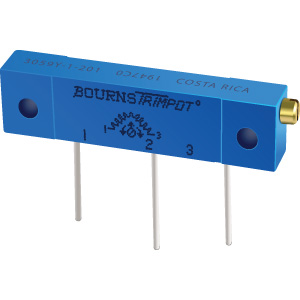

3059 | ![]() |
![]() |
200 cycles | 1 watt | through-hole | 10 ohms to 2 megohms | 1% or 2 ohms (whichever is greater) | sealed | 3059 (10 to 250 Ohms) 3059 (250 to 25K Ohms) 3059L (26K to 2M Ohms) |
||

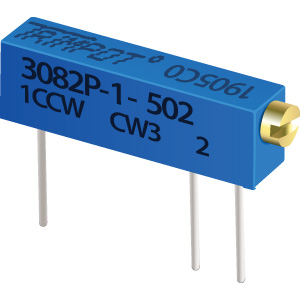

3082 | ![]() |
![]() |
200 cycles | 0.3 watts | through-hole | 10 ohms to 2 megohms | 3 % or 3 ohms (whichever is greater) | sealed | 3082 (10 to 250 ohms) 3082 (250 to 50k ohms) 3082 (51k to 2M ohms) |
||

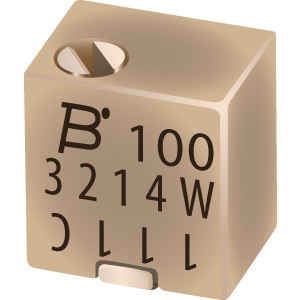

3214 | ![]() |
![]() |
200 cycles | 0.25 watts | surface mount | 10 ohms to 2 megohms | 3 % or 3 ohms (whichever is greater) | sealed | 3214 (10 to 200 ohms) 3214 (250 to 20k ohms) 3214 (25k to 2M ohms) |
||

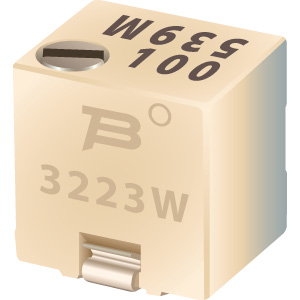

3223 | ![]() |
![]() |
200 cycles | 11 | surface mount | 10 ohms to 2 megohms | 3 % or 3 ohms max. (whichever is greater) | sealed | 3223 (10 to 200 ohms) 3223 (250 to 50k ohms) 3223 (51k to 2M ohms) |
||
3224 | ![]() |
![]() |
200 cycles | 12 | surface mount | 10 ohms to 2 megohms | 1 % or 2 ohms (whichever is greater) | ±100 ppm/°C | sealed | 3224 (10 to 200 ohms) 3224 (250 to 20k ohms) 3224 (25k to 2M ohms) |
|

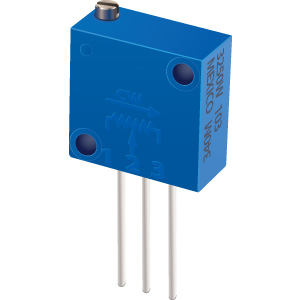

3250 | ![]() |
![]() |
200 cycles | 1 watt | through-hole | 10 to 50K ohms | 100 ohms ENR max. | sealed | 3250 L 3250 P, W |
||

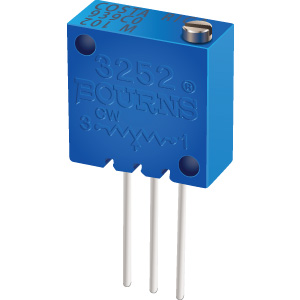

3252 | ![]() |
![]() |
200 cycles | 0.75 watts | through-hole | 10 ohms to 2 megohms | 1 % or 2 ohms (whichever is greater) | sealed | 3252 (10 to 250 ohms) 3252 (251 to 50K ohms) 3252 (51K to 5M ohms) |
||
3260 | ![]() |
![]() |
200 cycles | 0.25 watts | through-hole | 10 to 25K ohms | 100 ohms ENR max. | sealed | 3260 | ||

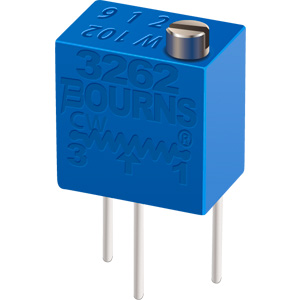

3262 | ![]() |
![]() |
200 cycles | 0.25 watts | through-hole | 10 ohms to 1 megohm | 3 % or 3 ohms (whichever is greater) | sealed | 3262 (10 to 250 ohms) 3262 (251 to 50K ohms) 3262 (51K to 1M ohms) |
||

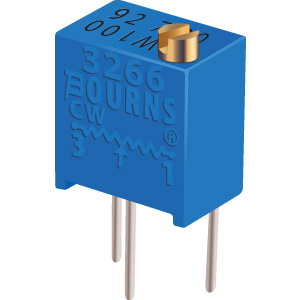

3266 | ![]() |
![]() |
200 cycles | 0.25 watts | through-hole | 10 ohms to 1 megohm | 3 % or 3 ohms (whichever is greater) | sealed | 3266 (10 to 250 ohms) 3266 (251 to 50K ohms) 3266 (51K to 1M ohms) |
||

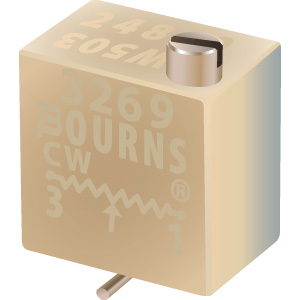

3269 | ![]() |
![]() |
200 cycles | 0.25 watts | surface mount | 10 to 1 megohm | 3 % or 3 ohms (whichever is greater) | sealed | 3269 (10 to 250 ohms) 3269 (251 to 50K ohms) 3269 (51K to 1M ohms) |
||

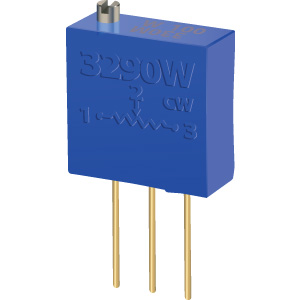

3290 | ![]() |
![]() |
200 cycles | 1 watt | through-hole | 10 ohms to 50K ohms | 100 ohms ENR max. | sealed | 3290 | ||

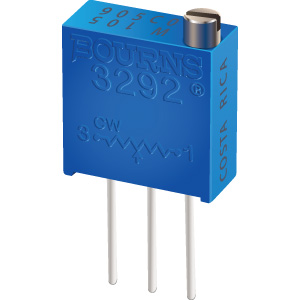

3292 | ![]() |
![]() |
200 cycles | 0.5 watts | through-hole | 10 ohms to 1 megohm | 1 % or 3 ohms (whichever is greater) | sealed | 3292 (10 to 250 ohms) 3292 (251 to 50K ohms) 3292 (51K to 2M ohms) |
||

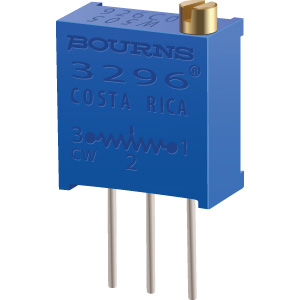

3296 | ![]() |
![]() |
200 cycles | 0.5 watts | through-hole | 10 ohms to 2 megohms | 1 % or 3 ohms (whichever is greater) | sealed | 3296 (51K to 2M ohms) 3296 (250 to 50K ohms) |
||

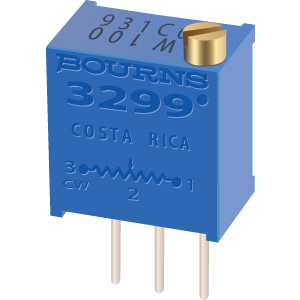

3299 | ![]() |
![]() |
200 cycles | 25 | 0.5 watts | through-hole | 10 to 2 megohms | 3 % or 3 ohms (whichever is greater) | ±100 ppm/°C | sealed | 3299 (51K to 2M ohms) 3299 (250 to 50K ohms) 3299 (10 to 250 ohms) |
3339 | ![]() |
![]() |
200 cycles | 4 | through-hole | 100 ohms to 1 megohm | 3 % or 3 ohms (whichever is greater) | ±100 ppm/°C | sealed | 3339 (26K to 1M ohms) 3339 (250 to 25K ohms) |
|
PV12 | ![]() |
![]() |
200 cycles | 4 | 0.5 watts | through-hole | 100 ohms to 1 megohm | 3 % or 3 ohms (whichever is greater) | ±100 ppm/°C | sealed | PV12 (10 to 200 ohms) PV12 (250 to 25K ohms) PV12 (50K to 500K ohms) PV12 (501K to 1M ohm) |
PV36 | ![]() |
![]() |
200 cycles | 25 | 0.5 watts | through-hole | 10 ohms to 2 megohms | 1 % or 3 ohms (whichever is greater) | ±100 / ±150 ppm/°C | sealed | PV36 (10 to 250 ohms) PV36 (251 to 50K ohms) PV36 (51K to 1M ohm) PV36 (1.01M to 2M ohms) |

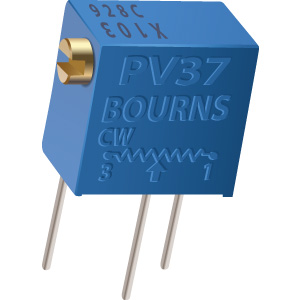

PV37 | ![]() |
![]() |
200 cycles | 12 | 0.25 watts | through-hole | 10 ohms to 1 megohm | 3 % or 3 ohms (whichever is greater) | ±150 ppm/°C | sealed | PV37 (10 to 250 ohms) PV37 (10K ohms) PV37 (251 to 25K ohms) PV37 (51K to 500K ohms) PV37 (501K to 1M ohm) |

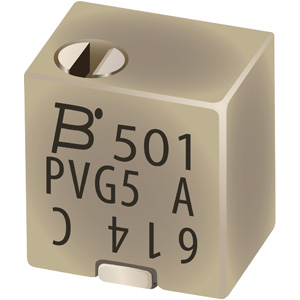

PVG5 | ![]() |
![]() |
200 cycles | 12 | 0.25 watts | surface mount | 100 ohms to 2 megohms | 1 % or 2 ohms (whichever is greater) | ±150 ppm/°C | sealed | PVG5 (10 to 200 ohms) PVG5 (250 to 25K ohms) PVG5 (50K to 2M ohms) |
*CRV stands for Contact Resistance Variation. It is the instantaneous change in contact resistance that will be encountered as the result of moving the wiper from one position to another. The limit of CRV is expressed as a percentage of the unit’s total resistance or ohms. When the wiper is actuated, the resistance at the wiper terminal, with respect to either end terminal, is apt to increase or decrease by a value within the CRV specification. (The Potentiometer Hand Book, Carl David Todd, Page 26)
Однооборотные триммеры Trimpot
Серия | Data Sheet | Внешний вид | Кол-во циклов | Кол-во оборотов | Мощность | Тип монтажа | Диапазон сопротивлений | CRV/ENR* | Герметичность | Сопотствующие документы |
---|---|---|---|---|---|---|---|---|---|---|

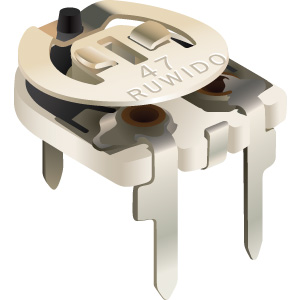

0655 | ![]() |
![]() |
100 cycles | 1 | 0.50 watts | rear & side PC pins | 100 ohms to 4.7 megohms | open frame | ||

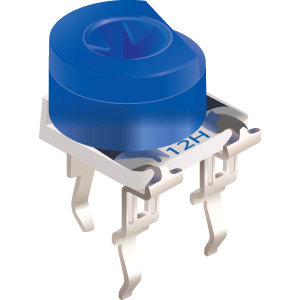

3306 | ![]() |
![]() |
50 cycles | 1 | 0.2 watts | through-hole | 100 ohms to 1 megohm | 3 % max. | open frame | Downloads |

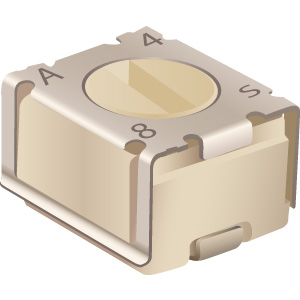

3312 | ![]() |
![]() |
25 cycles | 1 | 0.1 watts | surface mount | 10 ohms to 2 megohms | 5 % or 3 ohms (whichever is greater) | sealed | Downloads |

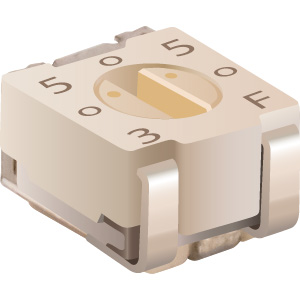

3313 | ![]() |
![]() |
100 cycles | 1 | 0.125 watts | surface mount | 10 ohms to 2 megohms | 3 % or 3 ohms (whichever is greater) | sealed | Downloads |

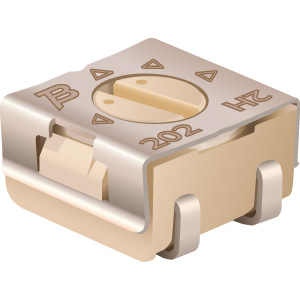

3314 | ![]() |
![]() |
100 cycles | 1 | 0.25 watts | surface mount | 10 ohms to 2 megohms | 3 % or 3 ohms (whichever is greater) | sealed | Downloads |

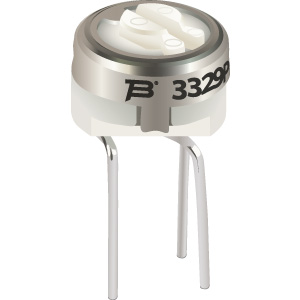

3329 | ![]() |
![]() |
50 cycles | 1 | 0.5 watts | through-hole | 100 ohms to 1 megohm | 3 % or 3 ohms (whichever is greater) | sealed | Downloads |
3345 | ![]() |
![]() |
200 cycles | 1 | 1 watt | through-hole | 10 ohms to 50K ohms | 100 ohms ENR max. | sealed | Downloads |

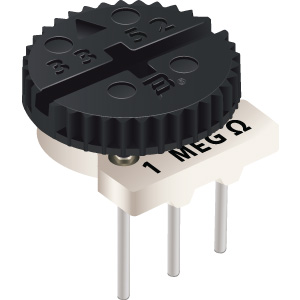

3352 | ![]() |
![]() |
200 cycles | 1 | 0.5 watts | through-hole | 10 ohms to 2 megohms | 1 % or 1 ohm (whichever is greater) | open frame | Downloads |
3361 | ![]() |
![]() |
200 cycles | 1 | 0.5 watts | surface mount | 10 ohms to 2 megohms | 3 % or 3 ohms max. (whichever is greater) | sealed | Downloads |

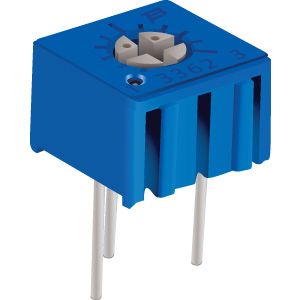

3362 | ![]() |
![]() |
200 cycles | 1 | 0.5 watts | through-hole | 10 ohms to 2 megohms | 1 % or 3 ohms max. (whichever is greater) | sealed | Downloads |

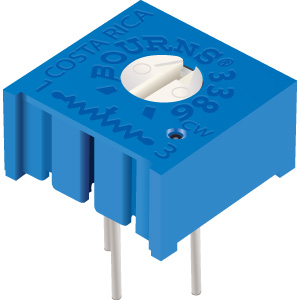

3386 | ![]() |
![]() |
200 cycles | 1 | 0.5 watts | through-hole | 10 ohms to 2 megohms | 2 % or 3 ohms | sealed | Downloads |

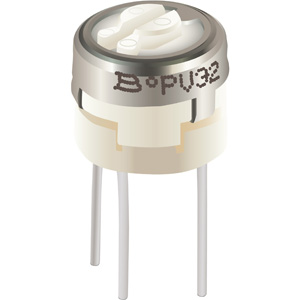

PV32 | ![]() |
![]() |
50 cycles | 1 | 0.5 watts | through-hole | 100 ohms to 1 megohm | 3 % or 3 ohms (whichever is greater) | sealed | Downloads |

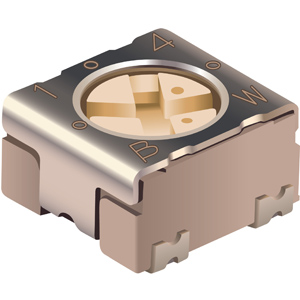

PVG3 | ![]() |
![]() |
50 cycles | 1 | 0.25 watts | surface mount | 10 ohms to 2 megohms | 2 % or 3 ohms (whichever is greater) | sealed | |

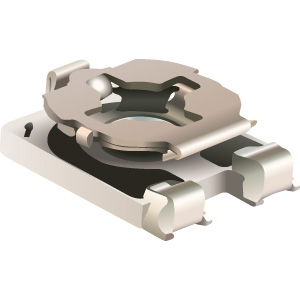

TC33 | ![]() |
![]() |
20 cycles | 1 | 0.10 watts | surface mount | 100 ohms to 1 megohm | 5 % max. | open frame | Downloads |

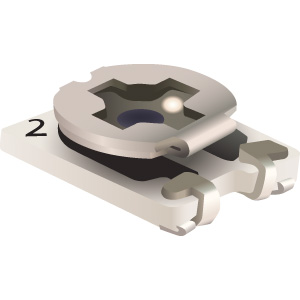

TC42 | ![]() |
![]() |
1 | 0.10 watts | surface mount | 100 ohms to 1 megohm | 5 % max. | open frame | Downloads |
*CRV stands for Contact Resistance Variation. It is the instantaneous change in contact resistance that will be encountered as the result of moving the wiper from one position to another. The limit of CRV is expressed as a percentage of the unit’s total resistance or ohms. When the wiper is actuated, the resistance at the wiper terminal, with respect to either end terminal, is apt to increase or decrease by a value within the CRV specification. (The Potentiometer Hand Book, Carl David Todd, Page 26)
